Lathe.jpg#asset:396

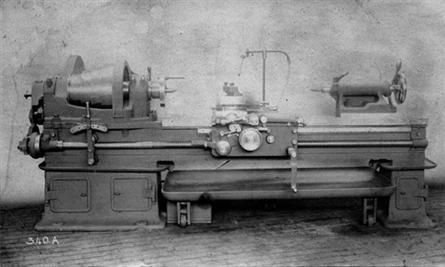

Our first lathe purchased from the Walter Newbold & Co catalogue

Img 4784
Sinada Horizontal Borer machining chain links for drag lines used in the mining industry
P8090126

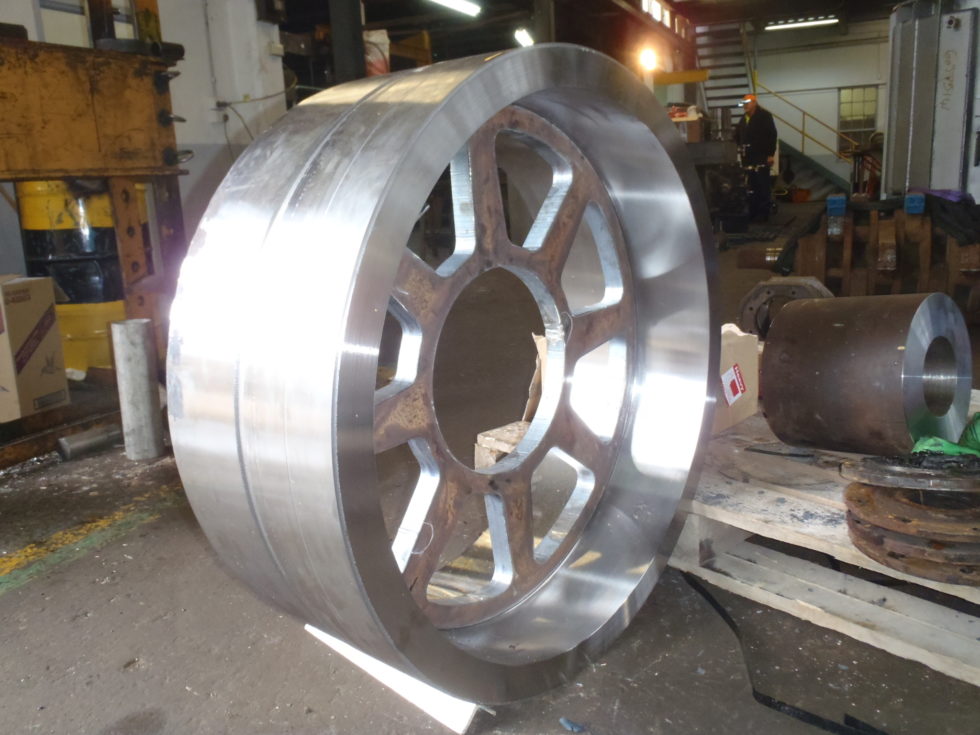

Gear blank being manufactured at Glasgow Engineering

Milling Machines

Mechanicy Universal Milling Machine FWA41M with D.R.O
  • Date of manufacture 1987
  • Cross travel 356mm (14")
  • Longitudinal travel 1066mm (42")
  • Vertical travel 445mm (17.1/2")
  • Maximum swivel angle on table + 45°
  • Maximum table load 500kg
  • Vertical head
  • Dividing head
  • Slotting head
  • DRO fitted
  • Machine Weight approximately 5300kg
Herbert 28A Milling Machine with D.R.O
  • Cross travel 685mm (27")
  • Longitudinal travel 1524mm (60")
  • Depth under cutter 711mm (28")
  • Maximum table load 1000 kg
  • Motorised AC 30/20 HP
  • Overall Dimensions: 3,327 mm (L) x 3,429 mm (W) x 3,505 mm (H)
  • DRO Fitted
  • Machine Weight approximately 10000kg
Cincinnati No.2 (2MH) Universal Milling Machine
  • Cross travel 304mm (12")
  • Longitudinal travel 610mm (24")
  • Vertical travel 380mm (15")
  • Universal vertical head
  • Dividing head
  • Slotting head
  • Machine Weight approximately 1486kg
Bridgeport Vertical Milling Machine Model J
  • Table Size 228mm (9") x 1066mm (42")
  • Travels Long. 660mm (26”)
  • Cross 304mm (12”)
  • Quill 127mm (5”)
  • Knee 406mm (16”)
  • Spindle Speeds 60 - 2750 RPM
  • Taper R-8
  • Machine Weight approximately 907kg

Borers

Sinada SB100 Horizontal Borer with D.R.O
  • 500mm facing head
  • Hardened and ground slide ways
  • 100mm spindle
  • outrigger table supports
  • 1400mm table cross travel
  • table size approx 1080 x 1280mm
  • 1500mm longitudinal travel
  • approx 700mm, horizontal spindle travel
  • overall dimensions approx 5100 x 2400 x 3000(height) mm
  • DRO fitted
  • Machine Weight approximately 14000kg
Union BFT 63 Horizontal Borer
  • Quartering table 915mm (36") x 711mm (28")
  • Distance between column 1676mm (66")
  • Spindle diameter 60mm (2. ¼")
  • Maximum spindle height above table 685mm (27")
  • Facing diameter 660mm (26")
  • Machine Weight approximately 5000kg
Climax BB1149 Portable Hydraulic Borer and Power Pack
  • Maximum bore diameter 609.6mm (24")
  • Minimum bore diameter 33.33mm (1. 5/16")
  • Facing diameter 304mm (12")
  • Hydraulic power pack 3 phase electric and Honda engine drive for off site applications
Webster & Bennett DH-48 Vertical Borer with D.R.O
  • Chuck diameter 1220mm (48")
  • Maximum swing 1390mm (54")
  • Height under bridge 620mm (24")
  • Cross travel 850mm (33")
  • Ram travel 650mm (25")
  • 4.5-100rpm, 18.5kw motor
  • DRO fitted
  • Machine Weight approximately 10000kg
Burkhardt GmbH Jig Borer HYOP 65 with D.R.O
  • Drilling rectangular 647mm (25.1/2") x 450mm (17.3/4")
  • Table 800mm (31.1/2") x 488mm (19. 1/4")
  • Drill Capacity 38mm (1. 1/2")
  • Boring Capacity 203mm (8")
  • Internal Grinding Capacity 9.5mm (3/8") diameter to 161mm (6 3/8") diameter
  • Machine Weight approximately 5000kg

Lathes

​AIS Lathe
  • Swing over bed 762mm (30")
  • Swing over saddle 610mm (24")
  • Distance between centres 7925mm (26 ft)
  • Machine Weight approximately 27000kg
​VDF Lathe
  • Swing over bed 902mm (35.5")
  • Swing over saddle 737mm (29")
  • Swing in gap 1422mm (56") x 470mm (18.5")
  • Distance between centres 3352mm (11 ft)
  • Metric screw cutting
​VDF Lathe 2 off
  • Swing over bed 635mm (25")
  • Swing over saddle 457mm (18")
  • Distance between centres 2286mm (7ft 6")
  • Metric screw cutting 1 with taper turning attachment
Yunnan
  • Swing over bed 229mm (9")
  • Swing over saddle 115mm (4.1/2")
  • Swing in gap 304mm (12") x 127mm (5")
  • Distance between centres 1000mm (40")
  • Metric screw cutting
​Colchester Mascot with D.R.O
  • Swing over bed 470mm (20")
  • Swing over saddle 254mm (10.1/2")
  • Distance between centres 2133mm (84")
​Colchester Triumph with D.R.O
  • Swing over bed 387mm (15.1/4")
  • Swing over saddle 228mm (9")
  • Distance between centres 1270mm (50")

Slotting Machines

​Macson
  • Stroke 203mm (8")
  • Height under ram 280mm (11")
  • Rotary table diameter 406mm (16")
  • Throat depth 406mm (16")
​Selson
  • Stroke 304mm (12")
  • Height under ram 457mm (18")
  • Rotary table diameter 660mm (26")
  • Throat depth 660mm (26")

Radial Arm Drill

​American Radial Arm Drill
  • Capacity 48 inch x 3 inch dia. 1220mm (48") x 76.2mm (3") dia.
​Corona Radial Arm Drill
  • Capacity 914mm (36") x 38.1mm (1 ½ dia.)
​Steel master SMRD1650
  • Capacity 1650mm (65") x 50mm (2")

Grinders

​Servian Surface Grinder
  • Magnetic chuck 609mm (24") x 203mm (8")
​Jones and Shipman 1300 cylindrical grinder
  • 254mm (10") x 685mm (27")

Presses

120 TON Horizontal wheel press
​100 TON Servex Garage type press
300 TON Horizontal straightening press

Some examples of our work
